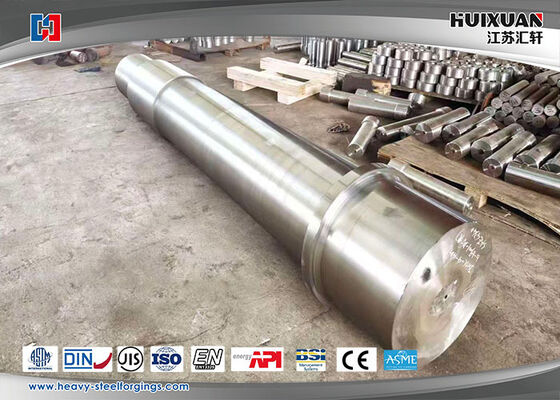

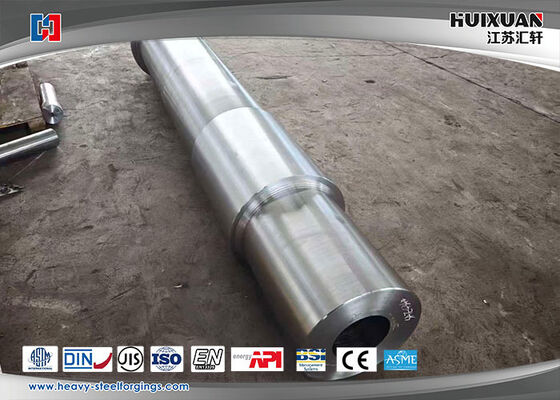

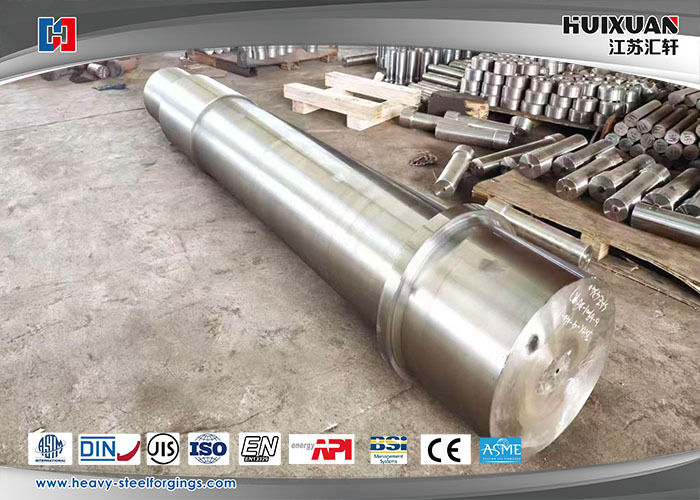

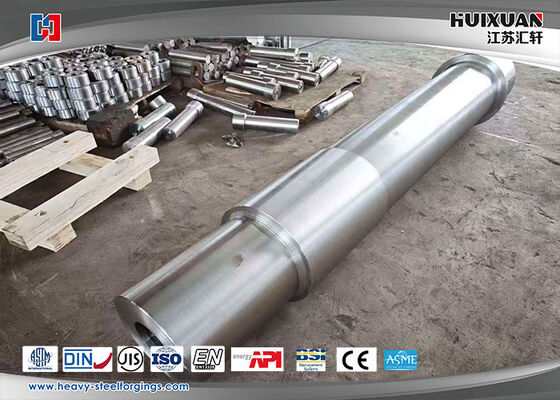

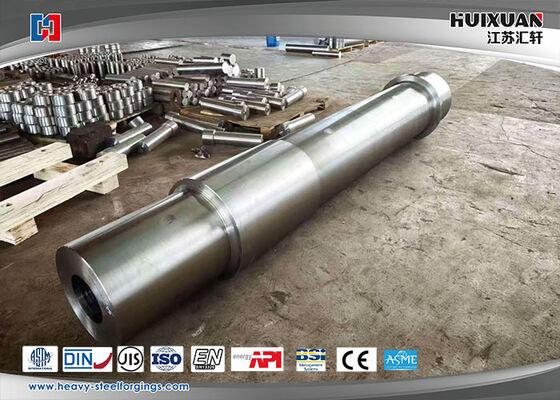

Alloy Steel Transmission pinion shaft Forging 4000T Open Die Hydropress

Gambar besar : Alloy Steel Transmission pinion shaft Forging 4000T Open Die Hydropress

Detail produk:

Tempat asal:	Cina
Nama merek:	HUIXUAN
Sertifikasi:	ASTM，ASME，DIN，JIS，ISO，BS，API，EN ISO9001：2008
Nomor model:	30t

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kasus kayu lapis, palet kayu, rangka baja
Waktu pengiriman:	30-50 hari
Syarat-syarat pembayaran:	L/C, T/T, D/P
Menyediakan kemampuan:	3000-5000Ton/bulan

Kontak

Detil Deskripsi produk

Proses peleburan:	EF+LF+VD	Perawatan pemanasan:	N+T Q+T
Rasio penempaan:	≥3,5	Aplikasi:	Industri
Keuntungan:	Kontrol Kualitas yang ketat	Kondisi:	Baru
Menyoroti:	alloy steel transmission pinion shaft , 4000T open die hydropress forging , gear blank forging with warranty

Alloy Steel Transmission Pinion Shaft Forging 4000T Open Die Hydropress

Product Description

Gear shaft is mechanical parts that can support rotating parts and rotate togerther to transfer movement,torque,bending moment,alloy steel material after heat treatment,nitriding and quenching treatment to reach gear strength,precision gear shaft after gear grinding to meet precision requirments,trilinear coordinate mesuring machine to check the presion.

Quick Detail

Max weight	30T
MOQ	1PC
Delivery time	30-50Days
Package	Plywood case,wooden pallet,steel frame
Delivery terms	FOB;CIF;CFR；DDU；
Payment terms	T/T,LC
Type of shipping	By ocean,air

Our Service

Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

Specification

Material elements	C	Si	Mn	P	S	Cr	Ni	Mo	Others
20CrMnMo	0.17-0.23	0.17-0.37	0.90-1.20	0.035	0.035	1.10-1.40	0.30	0.20-0.30	0.17-0.23
34CrNiMo6	0.30-0.38	≤0.040	0.50-0.80	≤0.035	≤0.035	1.30-1.70	1.30-1.70	0.15-0.30
18CrNiMo7-6	0.15-0.21	0.17-0.35	0.50-0.90	≤0.025	≤0.025	1.50-1.80	1.40-1.70	0.25-0.35
4340	0.38-0.43	0.15-0.35	0.60-0.80	≤0.035	≤0.040	0.70-0.90	1.65-2.00	0.20-0.30	-

Mechanical properties	Dia.(mm)	TS/Rm(Mpa)	YS/Rp0.2(Mpa)	EL/A5(%)	RA/Z(%)	Type Of notch	Impact energy	HBW
20CrMnMo	Ø15	≥1180	≥885	≥10	≥45	V	≥55	≤217HBS
34CrNiMo6	Ø15	750-900	450-600	≥13	≥55	V	-40℃≥20	≤269HBS
18CrNiMo7-6	Ø15	≥980	≥785	≥9	≥40	V	≥47	≤269HBS
4340	Ø15	≥980	≥835	≥12	≥55	V	≥78	≤179HBS

Competitive Advantage

High-precision dimensional tolerance;
Excellent mechanical properties;
Produce different dimension based on customer’s requirements;
Advanced manufacture equipments and inspection devices;
Excellent technical personality;
Control the production procedure strictly;
Pay attention on the package protection;
Quality full service.

Alloy Steel Transmission pinion shaft Forging 4000T Open Die Hydropress 0
